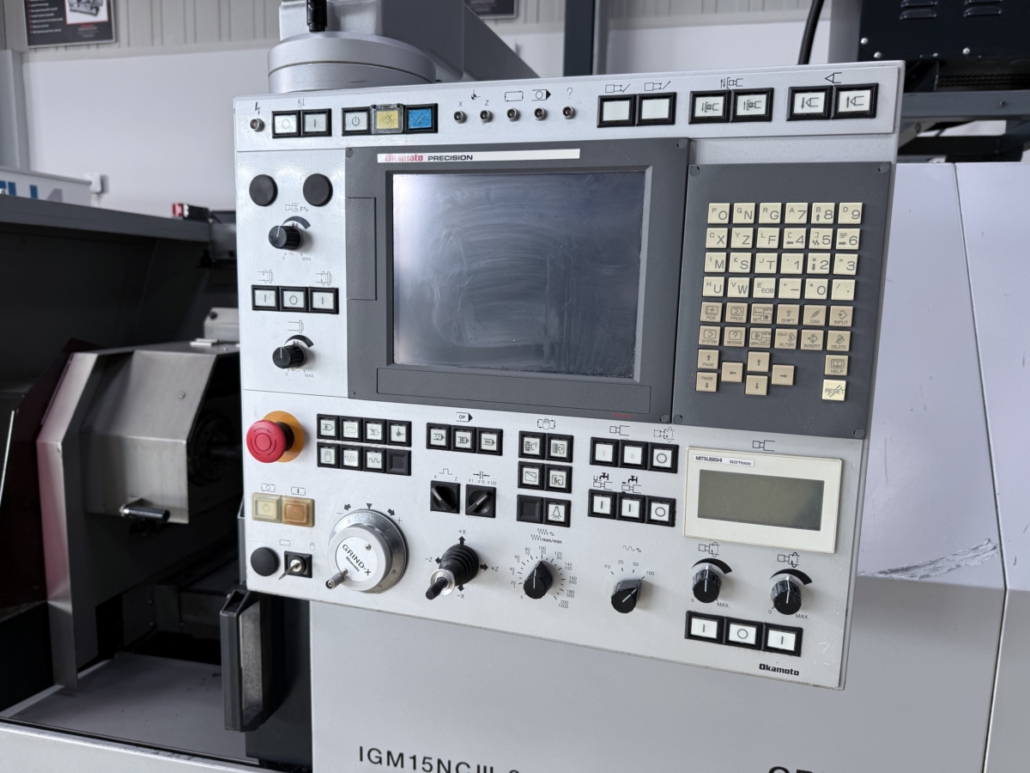

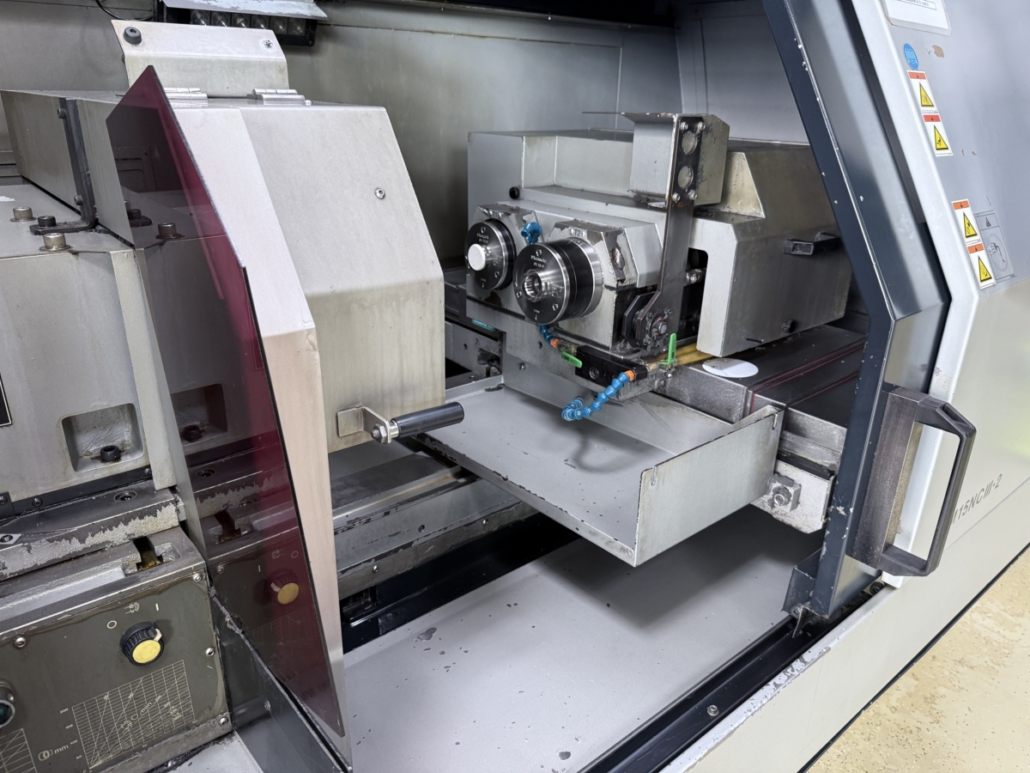

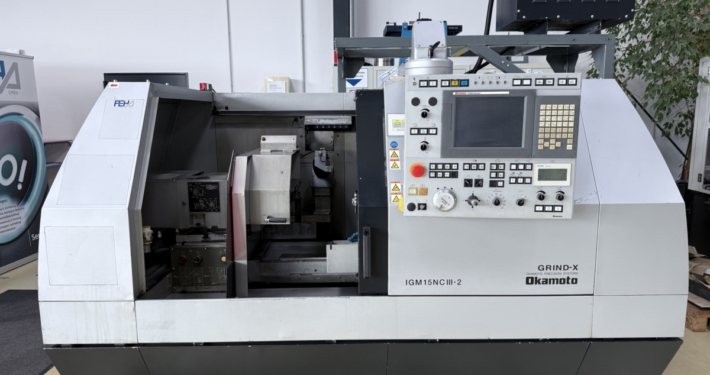

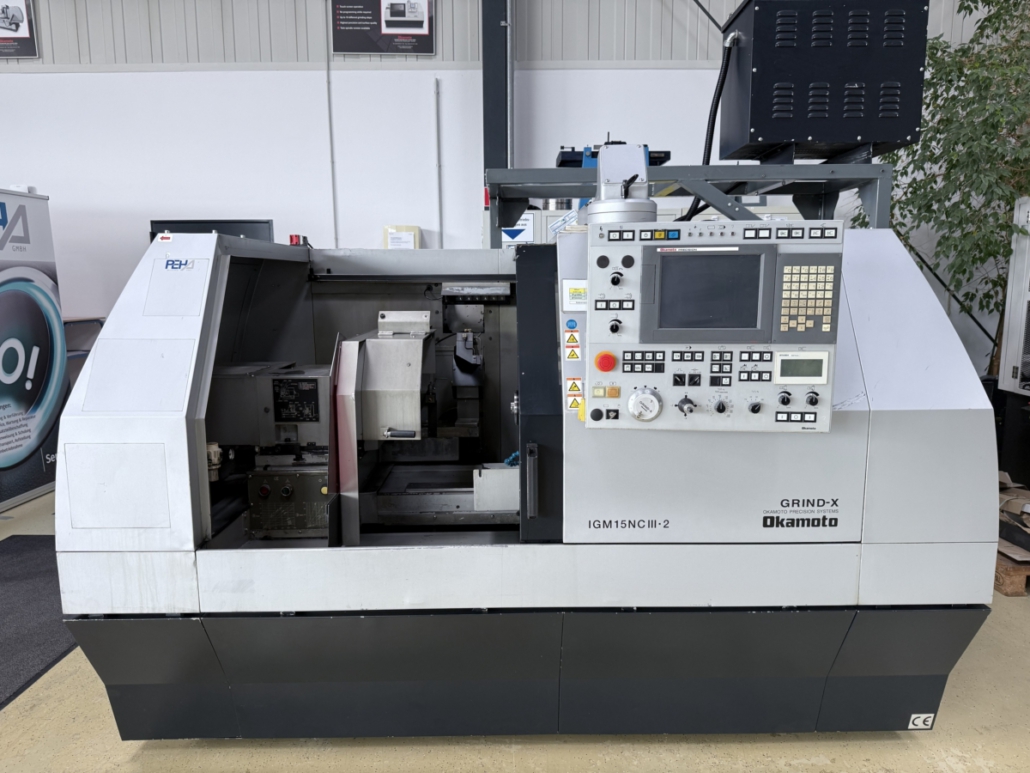

O K A M O T O High-Precision Internal Cylindrical Grinding Machine with FANUC CNC Control, System 21 i – TA, 2-Axis Simultaneous Machining For machining bores, end faces, and outer diameters in a single setup

TECHNICAL DATA

Internal grinding diameter: (6) – 100 mm

Grinding depth approx.: 80 mm

Max. table stroke:

X-axis 300 mm

Z-axis 500 mm

Swing diameter over table: 600 mm

Swing diameter in chuck cover: 260 mm

Table speed: (X/Z-axis) 0.1 – 10,000 mm/min

Swivel angle of workpiece spindle: -5 to +15 degrees

Smallest input increment:

X-axis 0.0001 mm

Z-axis 0.0001 mm

Workpiece spindle speed: 100 – 850 rpm

Grinding spindle speeds:

Standard (infinitely variable) up to 10,000 rpm and 20,000 rpm
